BPC® Core
BPC® Core is a self contained gas volume and flow meter for laboratories running several low flow experiments in parallel. It automatically measures up to 9 or 18 gas streams, compensates for temperature, pressure and moisture, and gives you direct access to results through Aurora™ without an external computer.
- Gas volume and flow meter
- 18 or 9 measurement channels
- Aurora™ software included
Effortless operation, maximum convenience

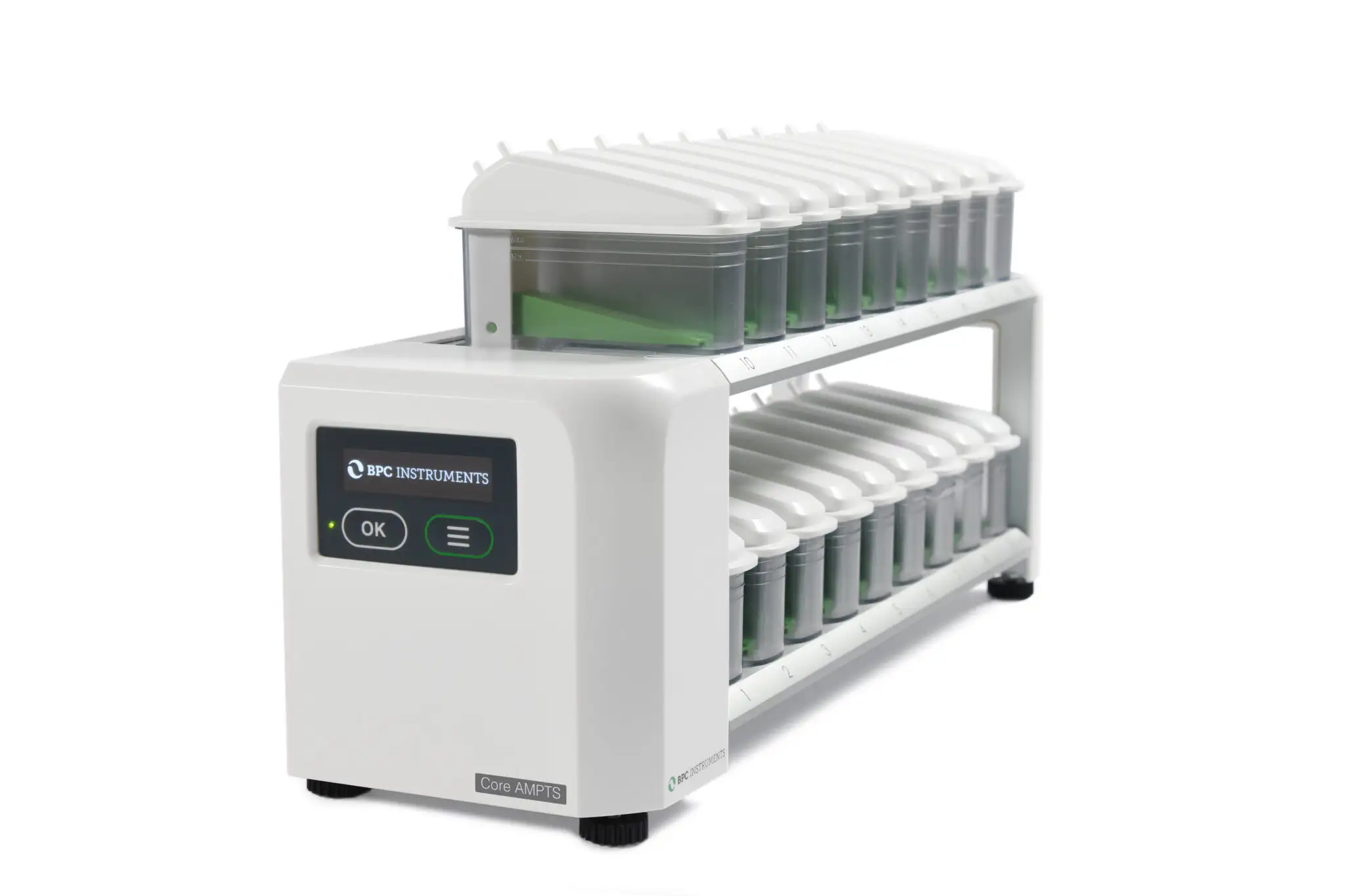

BPC® Core is a self-contained, high precision gas volume and flow meter array designed for monitoring of up to 9 or 18 parallel gas streams. Its distinctive integrated data acquisition and processing systems enable it to operate autonomously, eliminating the need for a computer or any other external device. Users can conveniently access real-time measurements remotely using any smart device with a web browser.
Choose between
2 and 9 mL resolution
Customise your set-up for your application area
Choose between
9 or 18 channels
Run samples, blanks and controls in parallel
Software
Aurora™ included
Set up, monitor and export data in the browser
Features
Automated testing
Measure gas volume and flow automatically, with minimal intervention required during a test.
Browser based software
Included Aurora™ software lets users set up, monitor and review experiments remotely and locally in the browser.
Automated compensation
Real time pressure, temperature and moisture compensation helps normalise gas volume and flow data to standard conditions.
Easy data export
Export experiment data as spreadsheet files with a uniform time axis for further analysis and reporting.
Controlled mixing
Connect to our agitation systems to control and maintain adjustable mechanical agitation.
Read results from anywhere
Connect to your local network or the internet, so that you can monitor results from any device, including tablets and mobile phones.

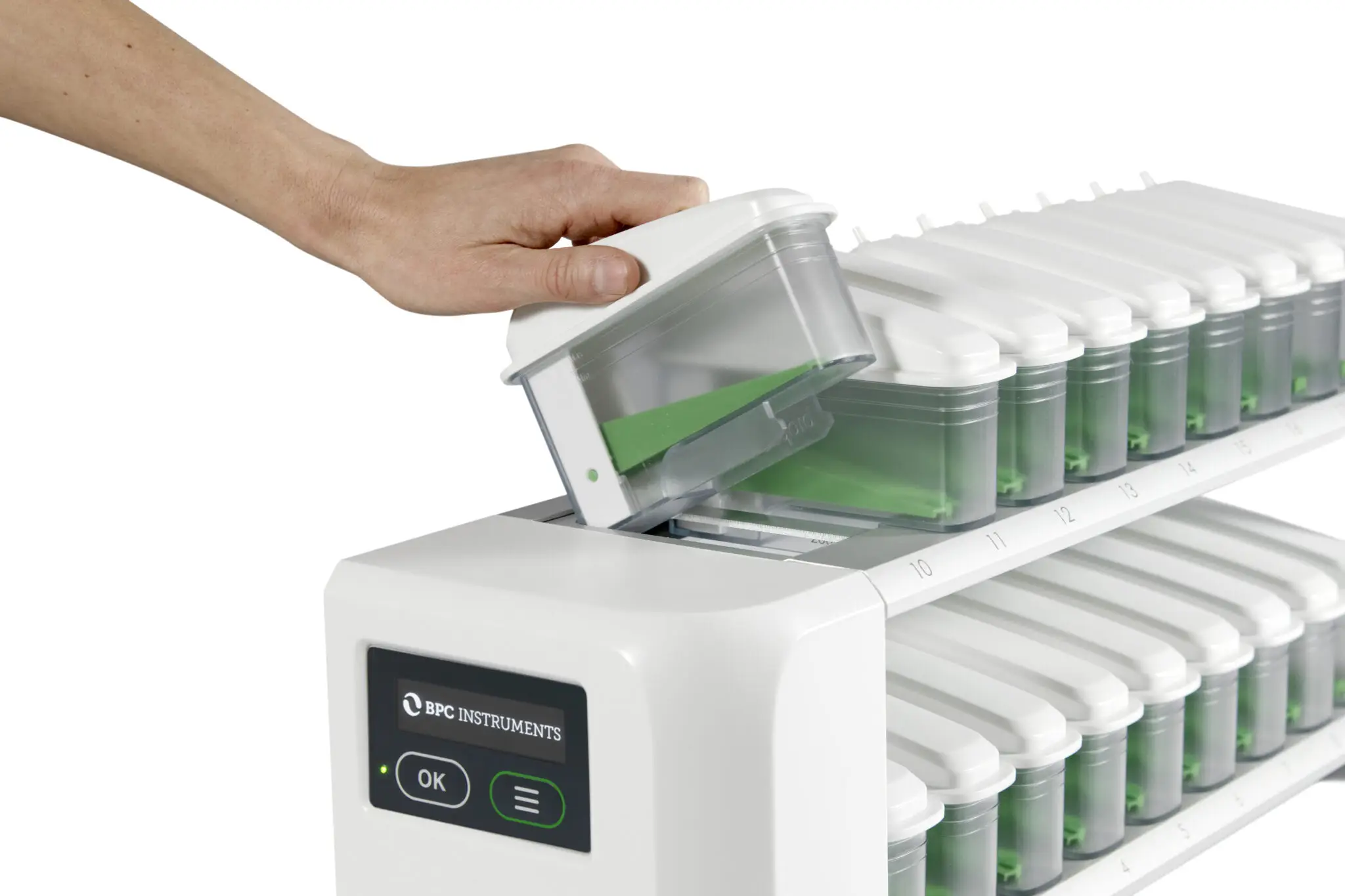

Modular maintenance
The modular design makes it easier to exchange consumable parts without the need for service.
Why choose BPC® Core?
Effortless operation, maximum convenience
It’s automatic. This translates to reduced labour costs and no need for expert assistance. A user-friendly, intuitive interface simplifies the setup and monitoring of gas evolution or consumption processes. Whether it’s a research project or an industrial application, using BPC® Core is a breeze. Just fill the flow cell units with water, connect to a power source, then start your experiment.
Accurate measurements in any environment
Utilising real-time temperature, pressure and humidity compensation ensures all gas volume and flow measurements are accurate across different environments
Versatile gas volume and flow measurement
BPC® Core offers users the ability to measure low gas volume and flow with exceptional accuracy and precision. This intelligent analytical instrument finds application in a wide array of fields, serving both research and industrial purposes, including biogas, biodegradability, animal nutrition, biohydrogen GHG emissions and more.
Structured data handling
Gas measurements, experiment settings and exported results are handled in one platform, reducing the need for separate files and manual calculations.
Calibration free
BPC® Core’s calibration-free flow cell units come in two resolutions (2 and 9 mL) and can be exchanged at any point.
Get a Quote
Within 48 Hours
Request a quote from our sales team for BPC® Core. Share your application, expected sample throughput and the type of gas measurement you need. Our product specialists can help you choose the right configuration and suitable accessories for your laboratory.
Trusted by laboratories, research institutes and industrial customers worldwide
Aurora™ Software included
Aurora™ is the experiment software included with BPC® Core. It is accessed through a web browser and gives users a clear way to set up tests, follow gas production, store data and export results without installing software on an external computer.
With local data storage and remote access, laboratories can follow long running anaerobic batch tests from the lab, office or another location.
- Experiment setup in the browser
- Real time gas production monitoring
- Local data storage on the instrument
- Data export for further analysis
- Remote access from computer, tablet or smartphone
Want to know more?
Need help choosing a gas flow and volume meter?
Tell us about your sample throughput, reactor volume and test type. We can help you identify the right configuration.
Technical Specifications
Measurement
Working principle
Liquid displacement and buoyancy
Number of flow cell units
18 or 9 (Light)
Measurement resolution
2 and 9 mL
Detection capacity
10 million data points
Measuring range
0.2 to 1500 mL/h for 2 ml flow cells
1 to 6000 mL/h for 9 ml flow cells
Repeatability
CV ≤ 3% for 2 ml flow cells
CV ≤ 1% for 9 ml flow cells
Gases
Non-aggressive gases (e.g. CH4, CO2, H2, N2,…)
Technical
Built-in sensors
Temperature, Pressure, Hall, Gyro
Connections
Ethernet, Power supply, USB B, Motor control
Display
OLED 2.8”
256×64 white
Housing
Aluminium and plastic
Power supply
12 V DC / 1.0 A with 100-240 VAC
Usage
Indoor
Measurement medium
Deionised or distilled water
Operation temperature
10 – 50 °C
Operation pressure
-50 – 50 mbar
Dimensions
Core unit
55 x 19 x 17 cm; 3000 g
Flow cell unit
138 x 102 x 45 mm, 134 g (without water)
Power supply unit
89 x 48 x 33 mm, 127 g
Gas connector diameter
ID: 2.4-2.6 mm, OD: 4.2-4.7 mm
Recommended tube size
ID: 3.2 mm, OD: 6.4 mm
Downloads
Download product brochures and comparison documents.
Looking for manuals or other technical documentation?
You can find them in BPC Academy, our customer resource and training centre.
3 MB
Related spare parts
-

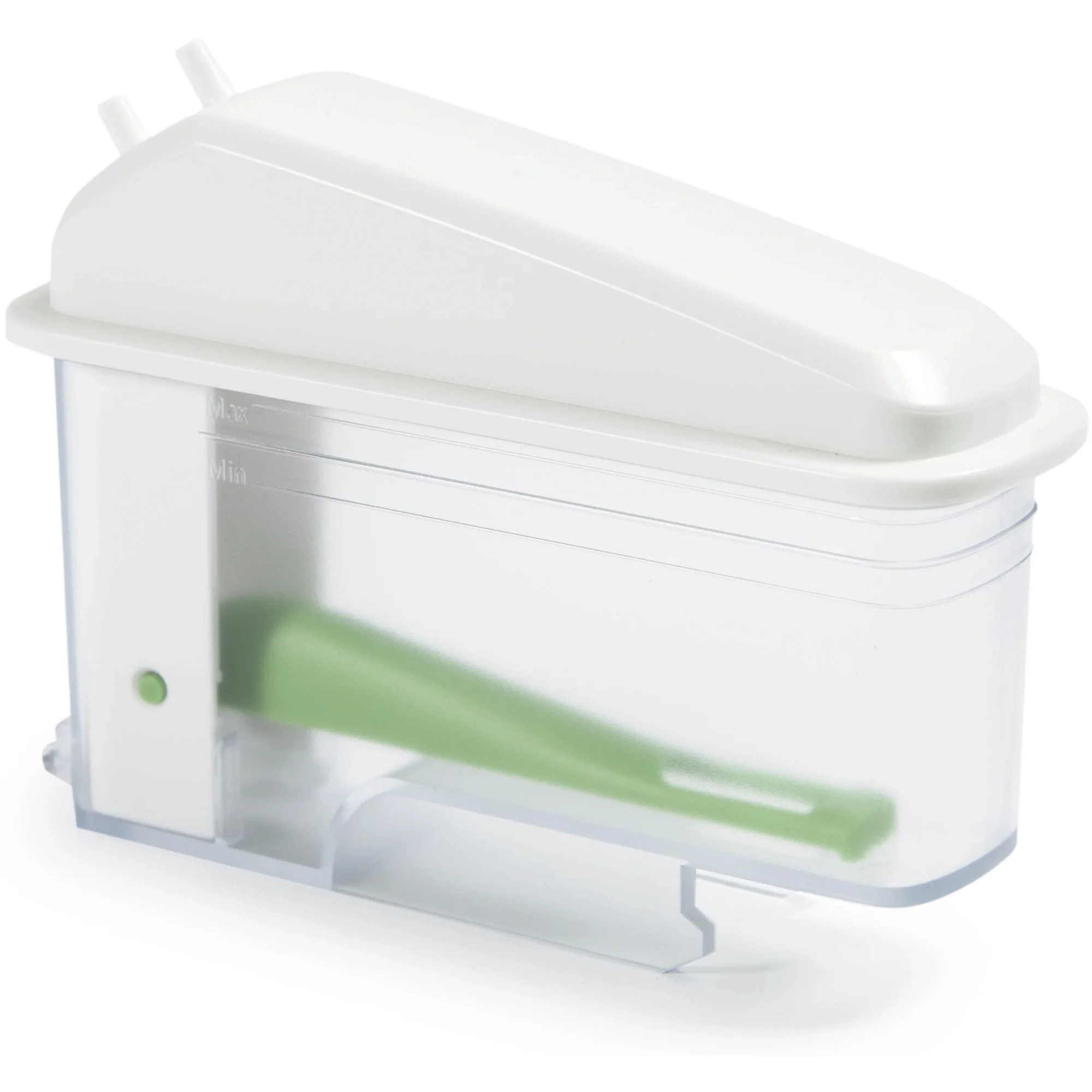

Flow Cell Unit 2mL, Package 5
Recommended price
€705,00 -
Flow Cell Unit 9mL, Package 5
Recommended price
€705,00 -
Main Unit Power Adapter MK 3
Recommended price
€130,00 -

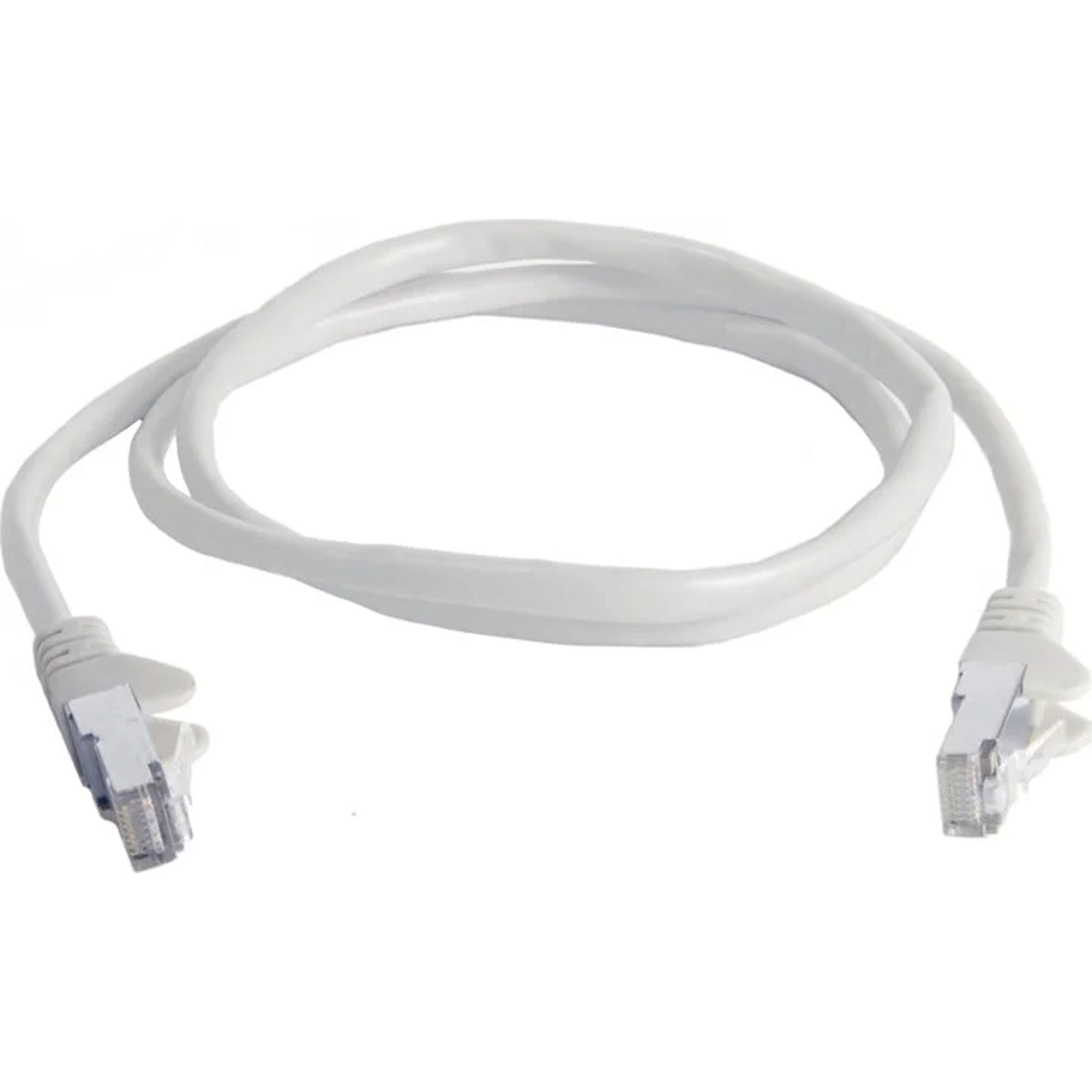

Network Cable 1.0 m
Recommended price
€25,00
Common questions about BPC® Core
What is BPC® Core used for?
BPC® Core is used for automated gas flow and volume measurements at low volumes (0.2 to 6000 L/h) for multiple reactors (9 or 18) in parallel
Does BPC® Core require an external computer?
No. BPC® Core has an embedded server and local data storage. Aurora™ software is accessed through a web browser, so no software installation on an external computer is required.
