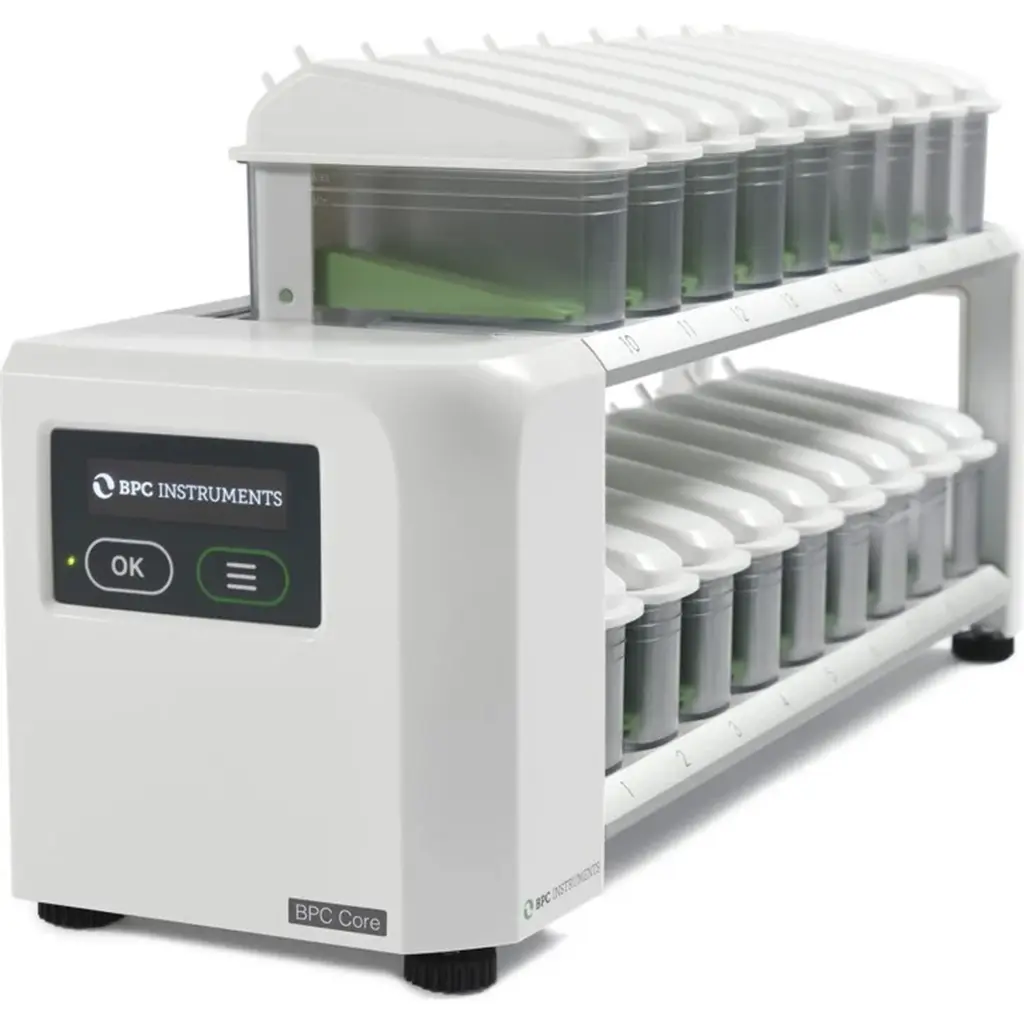

BPC Core

Technical specifications

Built-in sensors

temperature, pressure, hall, accelerometer

Connections

Ethernet, power supply, USB B, motor control

Display

OLED 2.8” 256 x 64 white

Material

Aluminium, Plastic

Power supply

12 V DC / 1.0 A (AC adapter 100-240 VAC)

Measurement medium

Deionised or distilled water

Operating pressure

-50 – 50 mbar

Operating temperature

0 – 50 °C

Operating environment

Indoor use

Dimensions and weight

55 x 19 x 17 cm, 3000 g (Base); 138 x 102 x 45 mm, 134 g (Flow Cell Unit w/o water) ; 89 x 48 x 33 mm, 127 g (Power supply)

Gas connector diameter

D: 2.4-2.6 mm; OD: 4.2-4.7 mm

Recommended tube size

ID: 3.2 mm; OD: 6.4 mm

Working principle

Liquid displacement and buoyancy

Channels

18

Detection capacity

10 million data points

Measurement range

0.2 to 1500 ml/h for 2 ml flow cell and 1 to 6000 ml/h for 9 ml flow cell

Repeatability

CV ≤ 3% for 2 ml flow cell and CV ≤ 1% for 9 ml flow cell

Non-agressive gases

Non aggressive gases (e.g. CH4, CO2, H2, N2)
