From standalone agitators, to full agitation systems and mechanical stirring for bioreactors, BPC Instruments offers a range of mechanical agitation systems to suit your needs.
Powerful, reliable and easy to use, discover a new type of mixing that will significantly improve your laboratory experience.
NEED MORE INFORMATION?
Request a quote or book a meeting with one of our product specialists!
Designed to fit your reactors, BPC’s agitation systems are available in a range of sizes and styles.

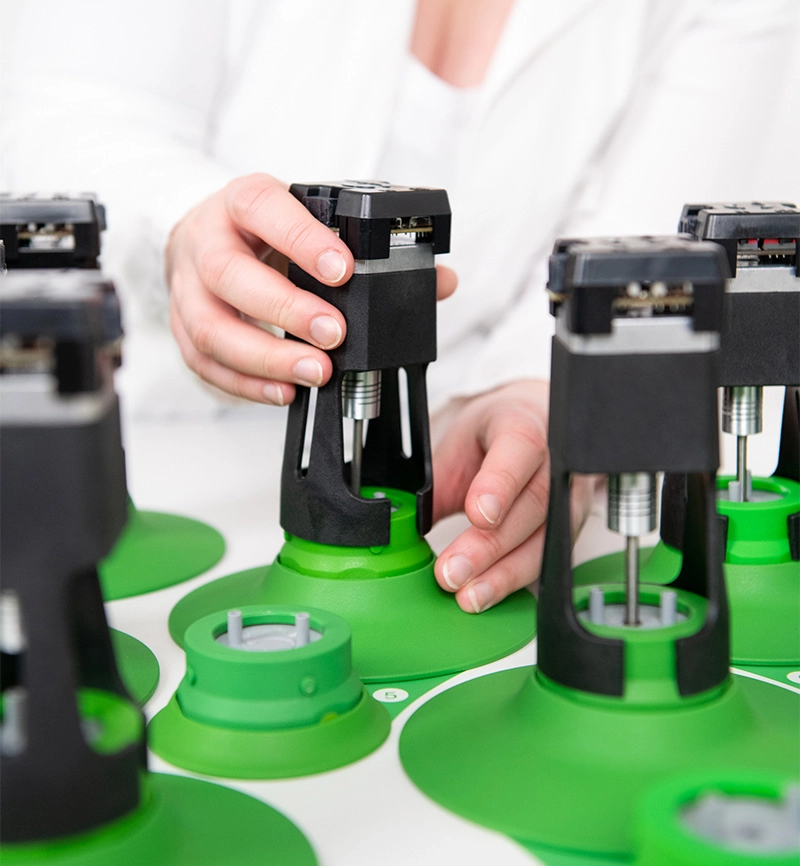

For glass reactors 500 mL to 2L, our agitation systems rely on a flexible agitation tube and an inserted stainless steel agitation rod, which provides clockwise or counterclockwise rotational movement. Driven by a high-quality brushless step motor, and available as a standalone product or full system.
For our larger bioreactors, powerful mechanical stirring is achieved using a propeller fitted stirrer rod with a range of mixing power available to suit your needs.
If you are tired of weak mixing intensity for magnetic stirrers, irregular spin, and magnets that keep falling out of place, then our agitation systems are the right choice. With its integrated and user-friendly mounting, our agitators are suitable for all your needs. Combining the best features from magnetic stirrers and overhead mechanical mixers and provides a superior agitation experience for laboratory usage.
BPC® Move is a compact standalone mechanical agitator ideal for easy, reliable mixing, dispersion and dissolution of particle-free solution and slurries. It combines the strength and reliability of mechanical agitation with the ease-of-use of magnetic stirring. Discover a new type of stirring that will improve user’s laboratory experience significantly.
The BPC CSTR Agitator is a long, brushless DC motor controlled agitator specifically designed for our CSTR bioreactors. Fitted with a propeller at the end of the shaft, the CSTR agitator ensures your bioreactors are mixed efficiently while allowing for both analogue or remote control (via our AuroraTM software).
The BPC Strong Agitator is our bespoke agitator for tough stirring requirements. Like the CSTR agitator, it is a long, brushless DC motor controlled agitator specifically designed for our bioreactors. However, the Strong Agitator comes with more than double the torque to stir high viscosity mixtures.
Rotation speed: 1-600 rpm and 1-220 rpm (silent mode)
Torque: 0.4 Nm
Dimensions: 4.6 x 4.5 x 17.5 cm
Weight: 0.48 kg
Operating modes: Normal; silent
Mixing efficiency: High
Mixing strength: Medium to high
User interface: 1.3” 128×64 OLED screen
Compatibility: Compatible with GL45 standard laboratory. Available as 500 mL, 1 L and 2L
Typical usage: Standalone, high viscosity or long term mixing
Mixing features: Single stirring direction (clockwise or counterclockwise), alternating stirring directions, continuous, intermittent, different mixing intensities in a cycle.
Rotation speed: 10-200 rpm
Torque: 0.1 Nm
Dimensions: 4.9 x 4.4 x 14.3 cm
Weight: 0.38 kg
Operating modes: Normal
Mixing efficiency: High
Mixing strength: Medium

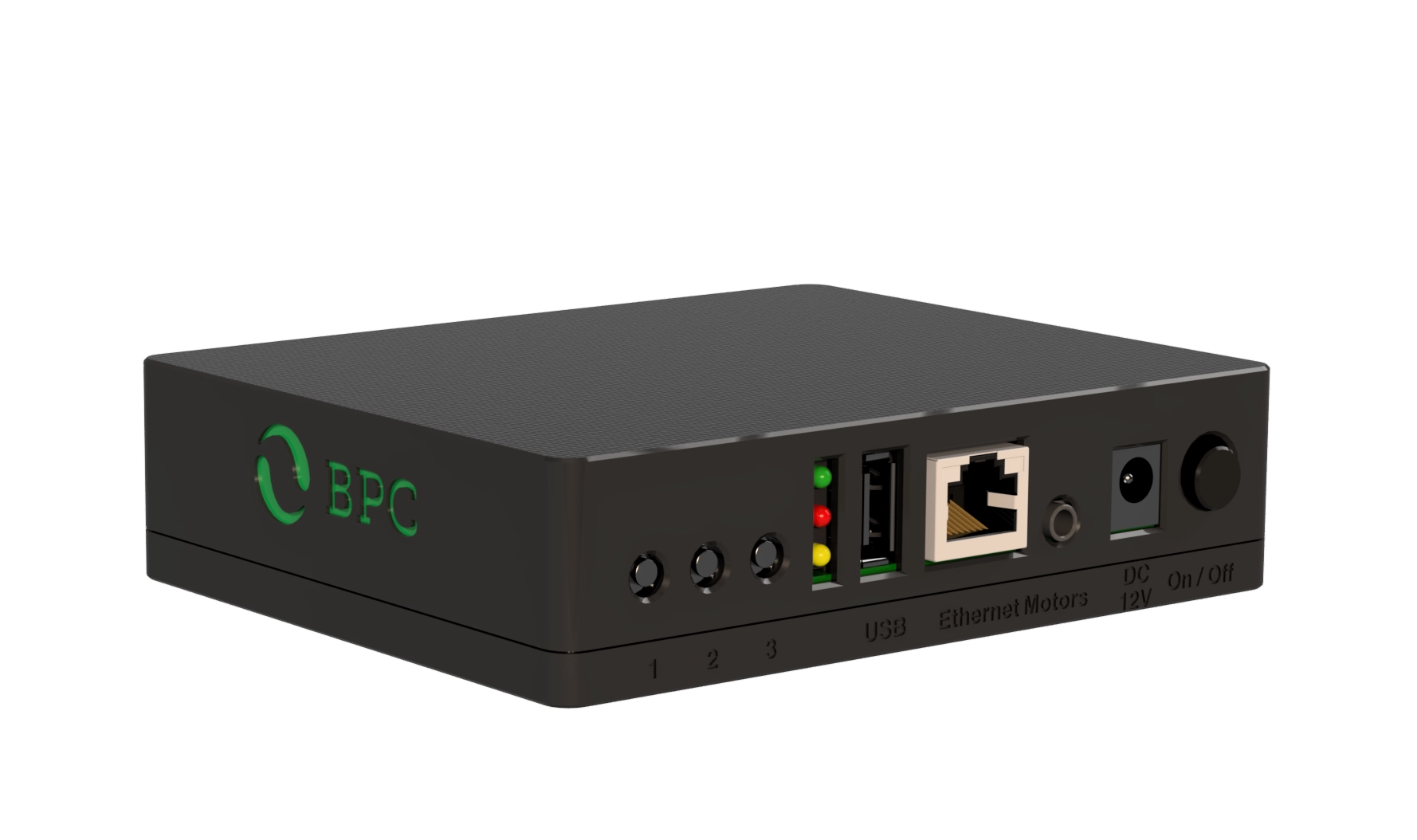

User interface: via Aurora software and motor controller unit
Compatibility: Compatible with GL45 standard laboratory models and BPC Instruments systems. Available as 500 mL, 1 L and 2L
Typical usage: Long term mixing in batch or coupled with BPC Instruments’ systems
Mixing features: Single stirring direction (clockwise or counterclockwise), alternating stirring directions, continuous, intermittent, different mixing intensities in a cycle.
Rotation speed: 15-300 rpm
Torque: 0.7 Nm
Dimensions: 9.3 x 6.7 x 16.6 cm
Weight: 1.75 kg
Operating modes: Normal
Mixing efficiency: High
Mixing strength: Medium
User interface: via Aurora software and motor controller unit
Compatibility: Compatible with CSTR bioreactors, available from BPC Instruments
Typical usage: Long term mixing in large CSTR bioreactors
Mixing features: Single stirring direction (clockwise or counterclockwise), alternating stirring directions, continuous, intermittent, different mixing intensities in a cycle.
Rotation speed: 15-300 rpm
Torque: 1.6 Nm
Dimensions: 9.3 x 6.7 x 19.5 cm
Weight: 2.36 kg
Operating modes: Normal
Mixing efficiency: High
Mixing strength: High
User interface: via Aurora software and motor controller unit
Compatibility: Compatible with CSTR bioreactors, available from BPC Instruments
Typical usage: Long term mixing in large CSTR bioreactors
Mixing features: Single stirring direction (clockwise or counterclockwise), alternating stirring directions, continuous, intermittent, different mixing intensities in a cycle.
